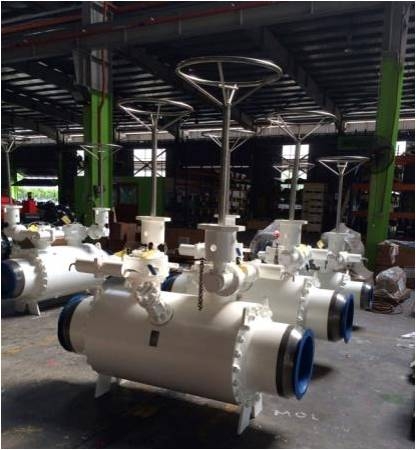

MV4 - MV14 DBB BALL VALVES
MV4 - MV14 DBB BALL VALVES
  • Established engineered product design, well-known in the industry for subsea, offshore and onshore applications.
  • Offers space and weight saving, compared to the option of two independent ball valves.
  • Flanged, WE/WE or flangeless design.
  • Selected typically for applications where the customer is looking for more reliability in the seats performing with zero leakage, where common failures occur due to foreign particles in the media. This product with a single body with two balls and four seats offers this increased performance capability.
  • A proven and reliable ball valve design.
  • Manufactured using forged materials in various grades CS, SS, Duplex and all other high alloys ensuring this design can meet all our customers material requirements.
  • Manual and/or actuated configuration.
  • Engineered products typically having a long lead time delivery of 24 weeks or longer.
  • Available for various industries and applications as shown below.
SIZES AND PRESSURE CLASSES
PRESSURE CLASSONSHORE / OFFSHORESUBSEA
ANSI CLASS 150 - 6001" - 36"1" - 24"
ANSI CLASS 9001" - 36"1" - 24"
ANSI CLASS 15001" - 20"1"-  20"
ANSI CLASS 25001" - 12"1" - 12"
API 2.000 (138 barg)1"13/16 - 9"1"13/16 - 9"
API 3.000 (207 barg)1"13/16 - 9"1"13/16 - 9"
API 5.000 (345 barg)1"13/16 - 9"1"13/16 - 9"
API 10.000 (690 barg)1"13/16 - 9"1"13/16 - 9"
API 15.000 (1.035 barg)1"13/16 - 5"1"13/16 - 5"

PSL 1, 2, 3, 3G

Other sizes and pressure classes available upon request

KEY FEATURES AND APPLICATIONS
› Full and reduced bore› CS, SS, Duplex, Superduplex, Inconel, Incoloy all types
› RF, RTJ, WE, Pup, Hub ends› Firesafe
› Soft and metal seated design› Onshore, Offshore, Subsea
› Oring and lipseal design› Above ground
› SR, DPE, Dual seat design› ESD
› Manual and actuated› HIPPS



DESIGN FEATURES
API 6D DESIGN AND CONSTRUCTIONSTANDARDDOUBLE BODY BARRIERstandard
TRUNNION MOUNTEDSTANDARDTRIPLE STEM BARRIERstandard
INDEPENDENT STEM AND BALLSTANDARDVENT PLUGstandard
FLOATING SEATSSTANDARDBLEED VALVEOPTIONAL
SOFT SEAT INSERTSTANDARDDRAIN PLUGstandard
METAL-TO-METAL SEATSOPTIONALSTEM INJECTION FITTINGstandard
POLYMERIC LIP-SEALSOPTIONALSEAT INJECTION FITTINGOPTIONAL
SELF-RELIEVING SEATS (SR)STANDARDSEAT POCKET OVERLAYOPTIONAL
DOUBLE ISOLATION AND BLEED
(DIB-1) (DOUBLE PISTON EFFECT) (DPE SEATS)
OPTIONALSEAL AREAS OVERLAYOPTIONAL
DOUBLE ISOLATION AND BLEED (DIB-2)
(DUAL SEAT) (SR+DPE)
OPTIONALWETTED PARTS OVERLAYOPTIONAL
DOUBLE BLOCK & BLEED (DBB)STANDARDBODY INTERNAL LININGOPTIONAL
FULL OR REDUCED BOREAS REQUESTEDEXTENDED STEM FOR UNDERGROUND
INSTALLATION
OPTIONAL
FLANGED ENDS / WELDED ENDS / HUB ENDSAS REQUESTEDEXTENDED BONNET FOR LOW
OR HIGH TEMPERATURE
OPTIONAL
ANTISTATIC DEVICESTANDARDLOCKING DEVICEOPTIONAL
ANTI BLOWOUT STEMSTANDARDLIFTING LUGS/VALVE SUPPORTstandard
FIRESAFE DESIGNSTANDARDMANUAL OR ACTUATED OPERATIONAS REQUESTED
IN-LINE MAINTENANCENOON-SITE MAINTENANCEYES
