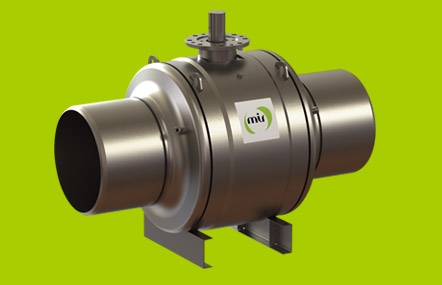

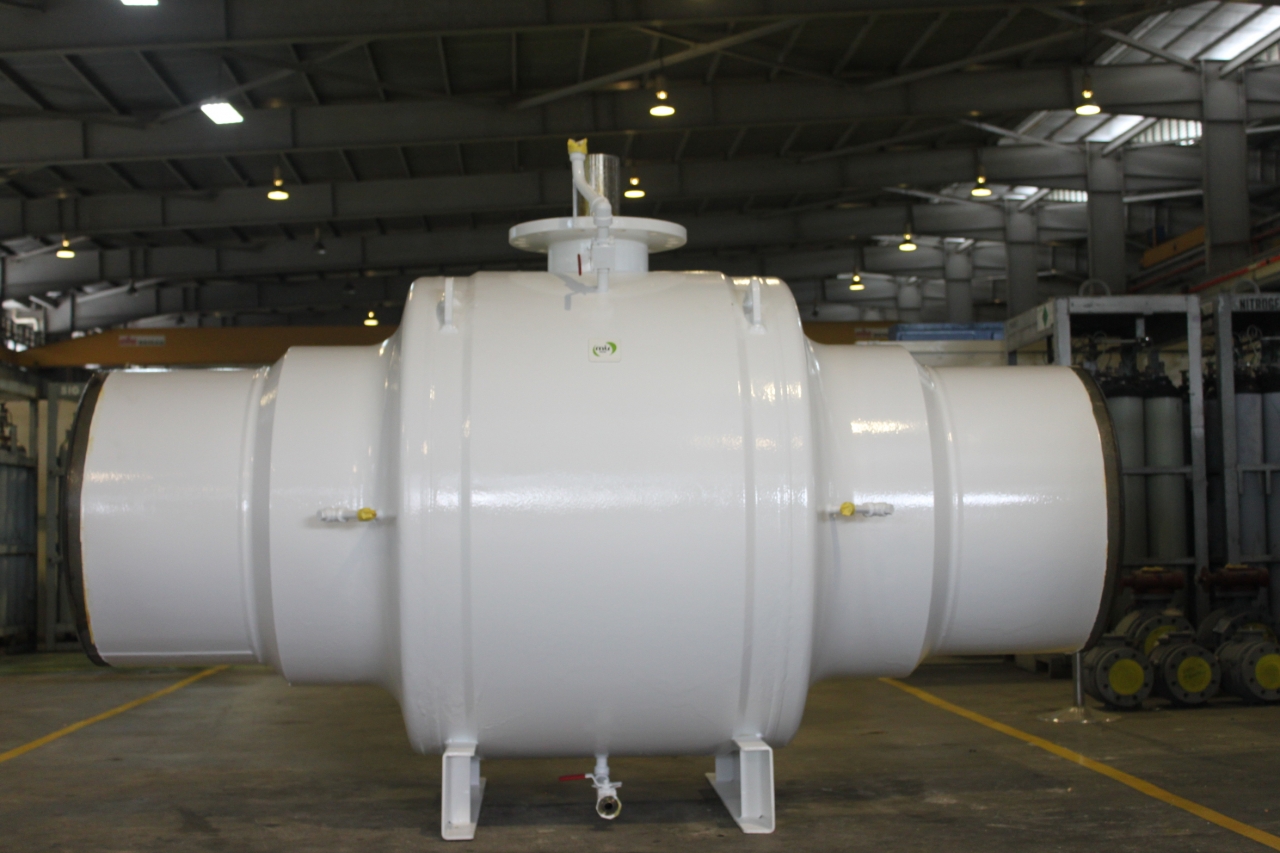

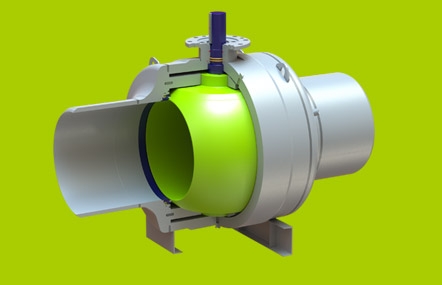

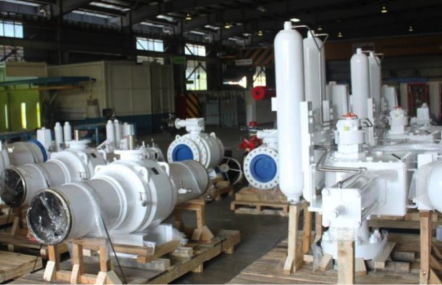

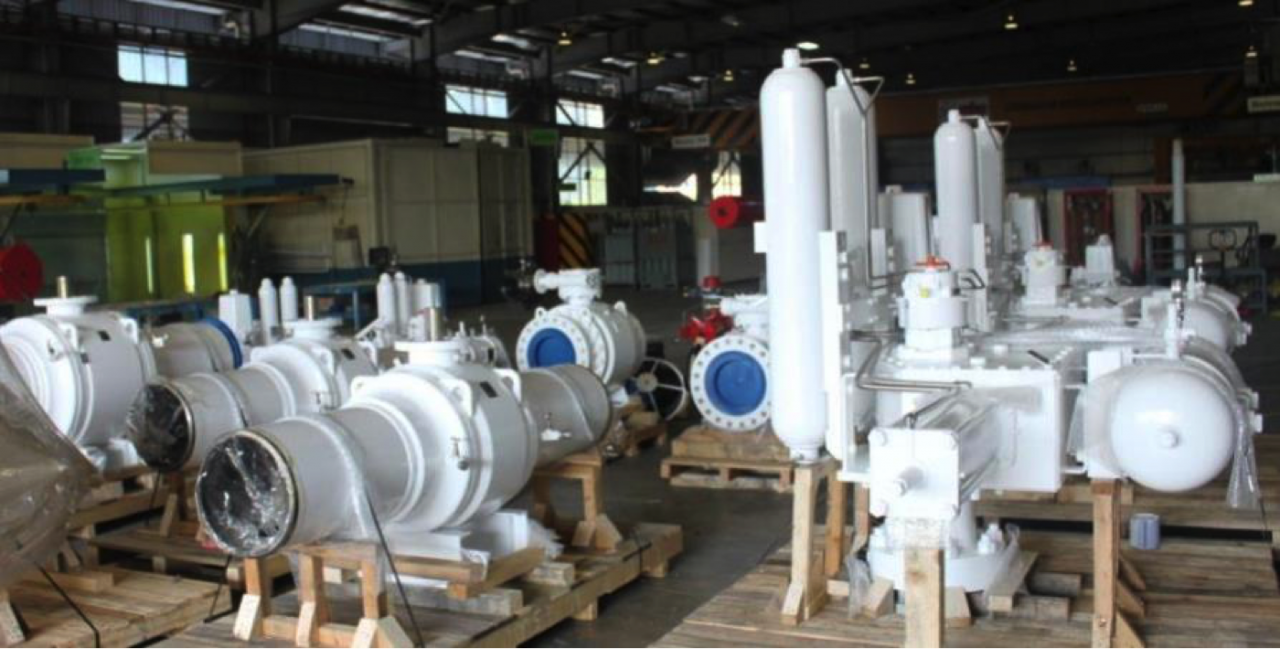

MV5 FULLY-WELDED BALL VALVES API6D
MV5 FULLY-WELDED BALL VALVES API6D
API 6D - API 6DSS
  • Established product design, well-known in the pipeline industry.
  • Offers a reduced overall weight, especially in larger sizes 24" and above with the welded ends.
  • Manufactured with forged materials in the various grades of CS, SS, Duplex and all other high alloys, thus ensuring this design can meet all our customers material requirements.

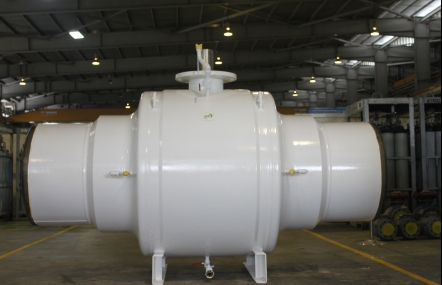

  • Compact body design available in large sizes 24" and above, with weld end/weld end connections.
  • Alternative option to the side-entry bolted body (MV3) for specific design applications.
  • Typically used in underground service gas transmission pipelines or subsea. These are the most commonly used applications.
  • The body is welded together, if repairs are required, it is a major exercise, which can only be performed at manufacturer's plant.
  • Suitable for various industries and applications as shown below.
SIZES AND PRESSURE CLASSES
SERVICEASME
CL. 150-600
ASME
CL. 900
ASME
CL. 1500
ASME
CL. 2500
Standard (above and below ground)2”-60”2”-48”2”-36”2”-16”
Subsea (API 6DSS)2”-48”2”-36”2”-24”2”-16”
Low temperature / cryogenic down to -196°CN/AN/AN/AN/A
High temperature < +500°CN/AN/AN/AN/A

Other sizes and classes available upon request

KEY FEATURES AND APPLICATIONS
› Full and reduced bore› API 6D/6DSS
› RF, RTJ, WE, Pup, Hub ends› Firesafe
› Soft and metal seated design› Onshore, Offshore, Subsea
› Oring and lipseal design› Above ground, underground
› SR, DPE, Dual seat design› ESD
› CS, SS, Duplex, Superduplex, Inconel, Incoloy all types› HIPPS
› Manual and actuated



DESIGN FEATURES
API 6D DESIGN AND CONSTRUCTIONSTANDARDDOUBLE BODY BARRIERSTANDARD
FACE-TO-FACE DIMENSIONS TO API 6D
AND ANSI B16.10
STANDARDTRIPLE STEM BARRIERSTANDARD
INDEPENDENT STEM AND BALLSTANDARDVENT PLUGSTANDARD
FLOATING SEATSSTANDARDBLEED VALVEOPTIONAL
SOFT SEAT INSERTSTANDARDDRAIN PLUGSTANDARD
PRIMARY METAL – SECONDARY SOFT SEATOPTIONALSTEM INJECTION FITTINGSTANDARD
METAL-TO-METAL SEATSOPTIONALSEAT INJECTION FITTINGOPTIONAL
O-RING TYPE SEALSSTANDARDSEAT POCKET OVERLAYOPTIONAL
POLYMERIC LIP-SEALSOPTIONALSEAL AREAS OVERLAYOPTIONAL
SELF-RELIEVING SEATS (SR)STANDARDWETTED PARTS OVERLAYOPTIONAL
DOUBLE ISOLATION AND BLEED (DIB-1)
(DOUBLE PISTON EFFECT) (DPE SEATS)
OPTIONALBODY INTERNAL LININGOPTIONAL
DOUBLE ISOLATION AND BLEED (DIB-2)
(DUAL SEAT) (SR+DPE)

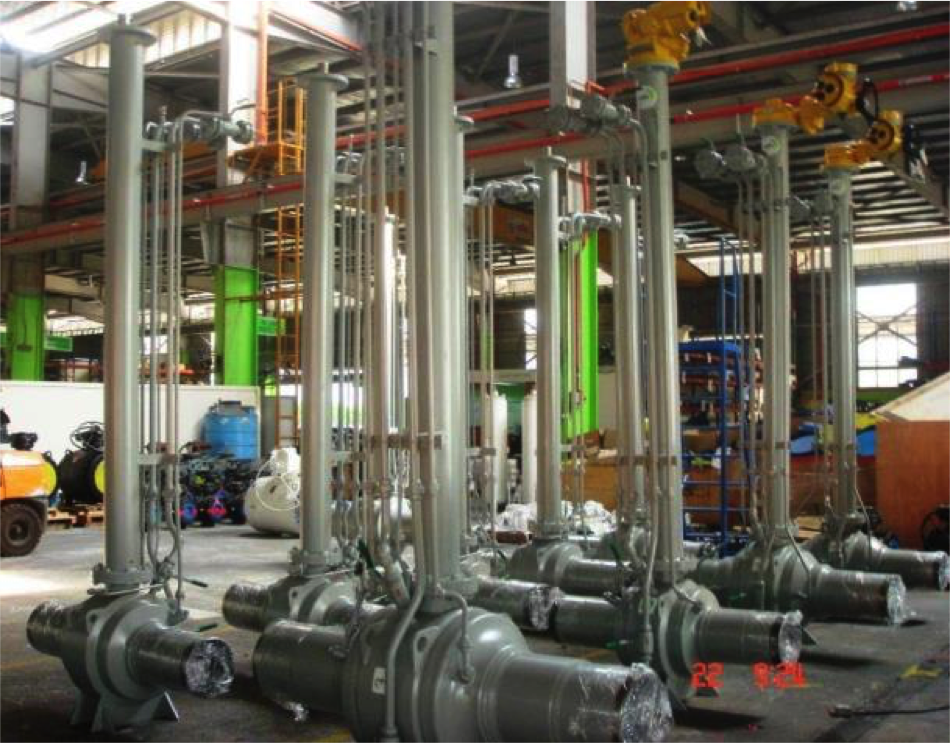

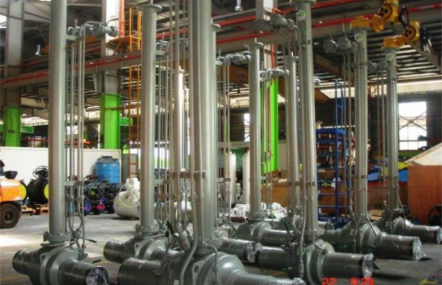

OPTIONALEXTENDED STEM FOR UNDERGROUND
INSTALLATION
OPTIONAL
DOUBLE BLOCK & BLEED (DBB)OPTIONALEXTENDED BONNET FOR LOW
OR HIGH TEMPERATURE
OPTIONAL
FULL OR REDUCED BOREAS REQUESTEDLOCKING DEVICEOPTIONAL
FLANGED ENDS / WELDED ENDS / HUB ENDSAS REQUESTEDLIFTING LUGS/VALVE SUPPORTSTANDARD
TRANSITION PUPS FOR WELDED ENDS VALVESOPTIONALMANUAL OR ACTUATED OPERATIONAS REQUESTED
ANTISTATIC DEVICESTANDARDFIRESAFE DESIGNSTANDARD
ANTI BLOWOUT STEMSTANDARDIN-LINE MAINTENANCENO
TRUNNION MOUNTEDSTANDARDON-SITE MAINTENANCEYES
