MV3-CP COMPACT BALL VALVES

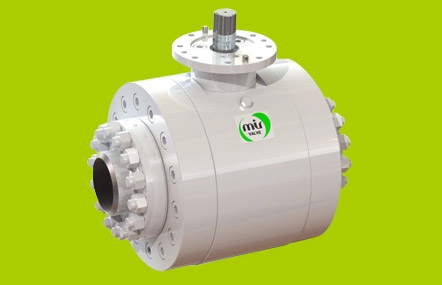

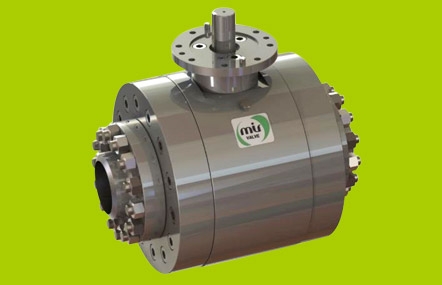

Compact design side-entry ball valve (MV3-CP)
Shorter and lighter than the standard MV3 model side-entry ball valve
Main advantage are the reduced face-to-face dimensions (not API 6D)
The bolted body construction allows for disassembly once removed from the pipeline for repairs to be carried out.
Manufactured with forged materials in various grades of CS, SS, Duplex and all other high alloys, ensuring the design can meet all customers material requirements.
Available for short delivery 16-24 weeks.
Delivery of spare parts from stock up to max.16 weeks.
Most common applications are offshore in flowlines and turrets (FPSO).

SIZES AND PRESSURE CLASSES
SERVICE	ASME CL. 150-600	ASME CL. 900	ASME CL. 1500	ASME CL. 2500
Standard	2”-16”	2”-16”	2”-16”	2”-16”
Subsea (API 6DSS)	N/A	N/A	N/A	N/A
Low temperature / cryogenic down to -196°C	N/A	N/A	N/A	N/A
HIgh temperature <+500°C	N/A	N/A	N/A	N/A

KEY FEATURES AND APPLICATIONS
› Full and reduced bore	› Firesafe
› RF, WE	› Onshore, Offshore
› Soft and metal seated design	› Flowlines
› Oring and lipseal design	› Turrets (FPSO's)
› SR, DPE, Dual seat design	› Above ground
› CS, SS, Duplex, Superduplex, Inconel, Incoloy all types	› SDV
› Manual and actuated	› Standard Temperature

DESIGN FEATURES
API 6D DESIGN AND CONSTRUCTION	STANDARD	DOUBLE BODY BARRIER	STANDARD
SPECIAL FACE-TO-FACE DIMENSIONS (non API 6D)	STANDARD	TRIPLE STEM BARRIER	STANDARD
INDEPENDENT STEM AND BALL	STANDARD	VENT PLUG	STANDARD
FLOATING SEATS	STANDARD	BLEED VALVE	OPTIONAL
SOFT SEAT INSERT	STANDARD	DRAIN PLUG	STANDARD
PRIMARY METAL – SECONDARY SOFT SEAT	OPTIONAL	STEM INJECTION FITTING	STANDARD
METAL-TO-METAL SEATS	OPTIONAL	SEAT INJECTION FITTING	OPTIONAL
O-RING TYPE SEALS	STANDARD	SEAT POCKET OVERLAY	OPTIONAL
POLYMERIC LIP-SEALS	OPTIONAL	SEAL AREAS OVERLAY	OPTIONAL
SELF-RELIEVING SEATS (SR)	STANDARD	WETTED PARTS OVERLAY	OPTIONAL
DOUBLE ISOLATION AND BLEED (DIB-1) (DOUBLE PISTON EFFECT) (DPE SEATS)	OPTIONAL	BODY INTERNAL LINING	OPTIONAL
DOUBLE ISOLATION AND BLEED (DIB-2) (DUAL SEAT) (SR+DPE)	OPTIONAL	LOCKING DEVICE	OPTIONAL
DOUBLE BLOCK & BLEED (DBB)	OPTIONAL	LIFTING LUGS/VALVE SUPPORT	STANDARD
FULL OR REDUCED BORE	AS REQUESTED	ANTISTATIC DEVICE	STANDARD
FLANGED ENDS / WELDED ENDS	AS REQUESTED	MANUAL OR ACTUATED OPERATION	AS REQUESTED
TRANSITION PUPS FOR WELDED ENDS VALVES	OPTIONAL	FIRESAFE DESIGN	STANDARD
ANTI BLOWOUT STEM	STANDARD	IN-LINE MAINTENANCE	NO
TRUNNION MOUNTED	STANDARD	ON-SITE MAINTENANCE	YES
